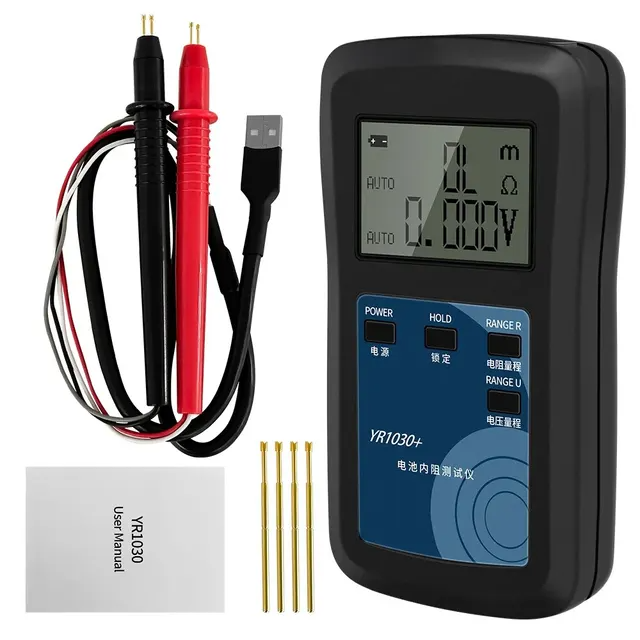

Tester rezystancji baterii litowych YR1030

Specifications:

Material: ABS

Color: black

Battery: 1 * lithium battery, 2000mAh (included)

Accuracy format: ±([accuracy percentage]+[least significant digit])

Range: 20m Ω/200m Ω/2Ω/20Ω/200Ω

Maximum resolution: 0.01mΩ/0.1mΩ/1mΩ/10mΩ/0.1Ω

Accuracy: 0.7%+7/0.5%+5/0.5%+5/0.5%+5/0.6%+5

Display mode: 22.00mΩ (when ZR function is enabled)/220.0mΩ/2.200Ω/22.00Ω/220.0Ω

In the range of 5%-95% of the gear, when it is not within this range (less than 5% of the range of the gear range, or greater than 95% of the range of the gear range), the error may be greater than the above accuracy.

Voltage measurement: ±(% reading +% range)

Range: 1V/10V/100V

Maximum resolution: 0.00001V/0.0001V/0.001V

Accuracy: 0.15+0.015/0.15+0.010/0.15+0.015

Display Mode: .99999V/9.9999V/99.999V

Positive and negative symmetry error ±(0.012%+5 words)

Temperature drift within normal use temperature (10℃-40℃) 100ppm/℃

Maximum voltage between any terminals: 100V

Display: internal resistance figures: 2000 counts Voltage figures: 99999 counts update 4 times per second

Temperature: working: 10℃-40℃, storage: -20℃-60℃ internal resistance temperature coefficient: 0.1 * (prescribed accuracy)/℃ (<18℃ or >28℃)

Power consumption:

<60mA (200mΩ and above range, when the power is 3.7V, the backlight is off)

<120mA (20mΩ range, when the power is 3.7V, the backlight is off)

<10mA (enter low power consumption mode)

0mA (shutdown)

Package size: 120*60*40mm/4.7*2.4 * 1.6in

Package weight: 320g / 11.3ounce
